A Dropside Semi Trailer is a special type of semi-trailer that has a fence and panel structure used to transport cargo and secure it to prevent slipping or damage. A panel semi-trailer usually consists of a tractor (trailer) and a semi-trailer compartment. The railing semi-trailer is equipped with fences and panels around it to form a closed space for safe transportation and fixing of goods.

The fence and plate structure of the fence semi-trailer is usually made of metal (such as steel or aluminum alloy) to provide strong support and protect the cargo from external damage. This design makes the slab semi-trailer particularly suitable for transporting various types of goods, including wood, building materials, furniture, electrical appliances, cargo containers, etc.

Parameter of Bulk Cargo Semi Trailer

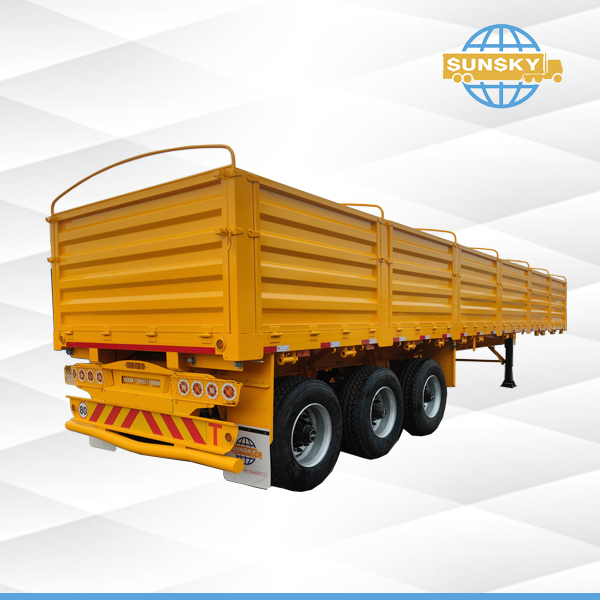

12.66M Dropside Semi Trailer

Feature: Carry 1X20FT、1X40FT、or 2X20FT container

Dimension(L*W*H): 12660*2500*2730mm

Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Model: XSS9380TP

No. of axle: 3

Payload(kgs): 40000

Tare weight(kgs): About 8000

Kingpin: Bolt-in type 3.5” or 2”

Landing gear: JOST brand Two-speed manual operation 19”

Tire size: TRIANGLE brand 385/65R22.5 (7 sets, including one spare tyre)

Rim size: 11.75*22.5(7 sets, including one spare rim)

Axle: FUWA brand 3 Axle, 13 Tons, outboard drum axle

Suspension：Spring suspension with 8 pcs of leaf spring

Brake system: Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Container locks 12(for 1x20GP,2X20GP,1X40HQ)

Painting: Two coat of anti-corrosion prime; one coat of finish painting

Accessory: One tool box; one set of standard tool

With WABCO ABS

Color: Optional

Restrictions on the use of board carts:
Load limit: There are certain limits to the carrying capacity of a curb, depending on the design and structure of the vehicle, as well as the power system used. Smaller sleds are generally good for light loads, while larger sleds can carry heavier loads. Specific load limits can be determined based on the vehicle's specifications and manufacturer's guidelines.
Cargo Size Limitation: The size of the cabin of the board car determines the size of the cargo that can be accommodated. Larger scooters generally have more room in the cabin and can accommodate larger-sized cargo. However, cargo that exceeds the size limit of the compartment may not fit on a collage.
Cargo stability: The fence and panels of the curb truck are used to fix the cargo to ensure that the cargo will not slip or be damaged during transportation. As a result, certain goods, especially liquid or bulk items, may not be suitable for transport on a curb, as they cannot be secured effectively.
Road restrictions: Curtains are often driven on urban roads and are therefore subject to road regulations and restrictions. For example, some roads may prohibit the driving of board cars, or have restrictions on the passing time and speed of board cars.

side wall trailers can vary by region, regulation, and specific transportation needs. When selecting and using a curb, follow local traffic rules and regulations and ensure safety and compliance requirements are met. SUNSKYVEHICLE has specialized in manufacturing semi-trailers for more than 30 years, welcome to consult us to get a new quotation.
