The trailers that we commonly used can be classified into drop side trailers, flatbed trailers, low bed trailers, warehouse trailers, van trailers, container trailers, dump trailers, fuel tanker trailers, bulk cement trailers and vehicle transport trailers and so on. What kind of trailer do you use? Do you know what goods your trailer is best for? Do you know what makes your trailer different from other trailers? I'm sure you'll understand after reading this article.

• Characteristics of drop side trailer series products



Drop side trailer loading part for pallet semi-trailer structure. Widely used, mainly suitable for medium and long distance transportation of heavy and bulk cargo, strong applicability, has become the first choice of medium and long distance freight vehicles.

1, the vehicle body is made of high-quality steel, advanced technology, strict production and manufacturing, the vehicle structure is reasonable, reliable performance, simple operation, beautiful appearance.

2, series semi trailer frame are beam through the structure, longitudinal beam using straight or gooseneck type. The web height is from 400mm to 550mm manganese plate welding, the rail is welded by automatic submerged welding, the frame is shot peening, and the beam is penetrated into the rail and welded as a whole.

3, the suspension is made of non-independent steel plate stamping rigid suspension, made of tandem leaf spring and suspension support. Reasonable structure, with strong rigidity and strength, used to support the load to mitigate the impact.

• Flatbed semi-trailer series product features



Flatbed semi-trailer has no board, which is widely used for medium and long distance freight transportation.

1, flat type semi-hanging type walking structure using high strength international steel. The vehicle has light weight, and ensures its anti-distortion, anti-earthquake, anti-turbulence ability to meet different road load capacity.

2, series semi - trailer frame for beam - through structure, longitudinal beam using straight or gooseneck. The height of web is from 400mm to 550mm, the rail is welded by automatic submerged arc welding, the frame is shot peening, and the beam is penetrated into the rail and welded as a whole.

3, the series dry plate spring and suspension support composition, reasonable structure, has strong rigidity and strength, used to support the load slow impact.

• Low bed semi trailer series product features



Low bed semi-trailer cargo is also very wide, suitable for a variety of mechanical equipment, large objects, road construction equipment, large tank, power station equipment machine all kinds of steel transport.

1, series of low bed semi trailer with flat, concave beam and tire exposed structure, longitudinal beam using straight or gooseneck type. Its frame is step type, the longitudinal beam section is I-shaped, with high stiffness, high strength characteristics.

2, the main plane of the frame and cargo platform is low, which ensures the smoothness of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel.

3, the use of three-axis balance type, two-axis balance type or rigid suspension, in front and rear leaf springs between the mass balance block, can make the deflection of the front and rear leaf springs equal changes, so that the front and rear shaft force balance;

4, low bed semi-trailer series products are suitable for a variety of mechanical equipment, large objects, road construction equipment, large tank, power station equipment, all kinds of just transport, a wide range of uses, efficient and fast. The vehicle adopts advanced computer aided design software to optimize the design flexibly and variously. The load-bearing surface of the frame is designed according to the user's requirements to meet the transportation of various special goods.

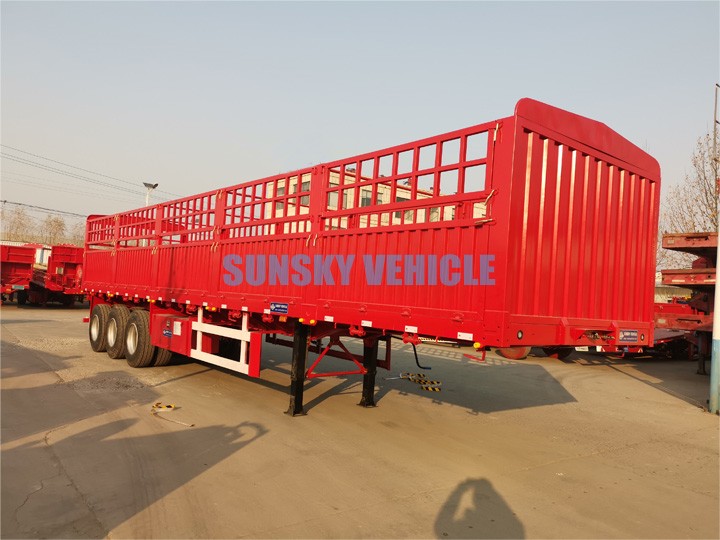

• Features of warehouse semi-trailer series products



Warehouse semi - trailer loading part of the semi - trailer fence structure design. Mainly used for the transportation of agricultural and sideline products and other light foam goods.

1, model and fence structure design process combined with the user's goods category, reasonable design, meet the load of fully reduce the weight of the carriage, simple structure, convenient disassembly, for users to reduce investment costs, create more profit value.

2, frame: the space frame structure is welded by the longitudinal beam and the overall through-beam. It can balance the strength, stiffness and toughness of the frame, with strong bearing capacity and no permanent deformation.

3, series of warehouse semi trailer frame are beam through the structure, the rail using straight or gooseneck type. Webs are from 400 to 500 in height, the rail is welded by automatic submerged arc welding, the frame is shot blasting, and the beam is threaded into the rail and welded to the whole.

4, suspension system: the use of new suspension system, high strength, strong impact resistance. Load balance of each axle, reasonable design of system pull rod Angle, in the process of frequent bumps, reduce the friction slip distance between tire and ground, effectively reduce tire wear, at the same time, adjustable pull rod, can adjust the wheelbase, effectively avoid the phenomenon of tire partial running and gnawing wheel.

• Features of van semi-trailer series products



Van semi-trailer series products are suitable for the transportation of household appliances, light textile goods, coal, sand and other building materials and tray goods.

1, the van transport semi-trailer has strong bearing capacity, high safety factor, reasonable design, strong and durable, and advanced manufacturing process.

2, the frame of the van transport semi-trailer is a beam through structure, and the longerbeam is straight or gooseneck. Webs are from 400 to 550 in height, the stringer is welded by automatic submerged welding, the frame is shot blasting, and the beam is threaded into the stringer and welded to the whole.

3, box structure: box body adopts high strength cold corrugated steel plate, no skeleton structure, center everywhere, diverse choices, large loading space, reasonable distribution of box body, X-type pull support, heavy load, light weight characteristics. The roof has closed, push and pull open type, open type, open generation of tarps pole type, easy to operate, to meet the diversified user, personalized requirements.

4, series leaf spring and suspension support. Reasonable structure, with strong stiffness and hardness, used to support the load to mitigate the impact.

5, the enclosed side protection design is adopted for the van transport semi-trailer, which effectively reduces the lateral risk when the vehicle is running at high speed and reduces energy consumption. The rear protection design has reasonable cart accessories, which is convenient for operation.

• Features of container trailer series products



Container semi-trailer is a semi-trailer with container structure. Mainly used for ship, port, air route, highway, transfer station, bridge, tunnel, multimodal transport supporting logistics system.

1, specially used for the transportation of all kinds of containers. Can be used repeatedly for a long time, with sufficient strength.

2, if the goods are transshipped in containers, they can be loaded directly in the consignor's warehouse and unloaded at the consignee's warehouse. There is no need to take the goods out of the container for replacement when the vehicle or vessel is changed midway.

3, can be loaded and unloaded quickly, and can be directly and conveniently reloaded from one means of transport to another means of transport.

4, easy to fill and unload the goods, to meet the personalized needs of customers. According to customer needs to ensure tooling, stable quality, reliable performance.

• Dump semi-trailer series product features



Dump semi trailer is suitable for coal, ore, building materials and other loose bulk cargo transport.

1, the carriage adopts rollover and back rollover self-unloading mode, which can effectively improve the transportation efficiency of the loader transporting loose bulk goods.

2, the frame and rail are welded with high quality manganese plate, and the container has two kinds of dustpan and rectangle. With high strength, strong lifting force, good stiffness, toughness, strong bearing capacity, no permanent deformation.

3, excellent technology: the main parts are processed with advanced equipment, and the longitudinal beam is made of automatic submerged arc welding. The assembly machine is used for accurate assembly of wheel shaft and steel plate spring.

• Tank semi trailer series product features



Tank semi trailer loading part structure for the tank semi trailer structure. Mainly used for transporting liquid, bulk material and bulk cement, etc.

1, tank truck series is divided into tanker truck, concrete mixer, powder material and bulk cement truck, water supply truck, etc.

2, tank through three-dimensional design, the use of advanced processing technology manufacturing. Chassis adopts special chassis of various manufacturers, advanced technology, reliable performance.

• Vehicle transport semi trailer series product features



The truck transport semi-trailer adopts the semi-trailer with fence structure design. Mainly carrying cars, but also carrying vans, commercial vehicles, jeeps and other passenger cars.

1, the body of the rod, cabinet frame structure, light structure, light weight, mostly for the upper and lower loading platform, the platform adopts hydraulic cylinder open, wire rope pulley structure, stable lifting, high positioning and other advantages.

2, light structure: the whole vehicle adopts the truss structure, the overall bearing frame, no semi trailer has the rail structure, light weight, weight lighter than similar vehicles about 30%.

3, safe and convenient operation: all loading and unloading platform lifting control operation is reliable, clear observation, accurate operation.

4, suspension system: the unique spring under the suspension system, variable section spring, good ride.



The above is the main freight and logistics market several types of semi trailer characteristics, there are some special trailers are not listed here. After reading these, have you found your own vehicle type? Follow SUNSKY VEHICLE, we will certainly provide you with satisfactory products and services.
